IP Gateway Audio Port, Network — Dual Port, VIP-802B
Valcom's VIP-802B IP Gateway Audio Port, Network — Dual Port enables voice access to two zones of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device with two identities (one per audio channel) for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C relay closures
- Programmable contact closure Inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Barrel jack for optional DC power
- Provides audio for up to 40 Valcom one-way amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
IP Gateway Audio Port, Network — Quad Port, VIP-804B
VIP-804B IP Paging Gateway
The VIP-804B is one of Valcom's IP Gateway Audio Port, Network — Quad Port enables voice access to four zones of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device with four identities (one per audio channel) for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C Relay closures
- Programmable contact closure Inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
- Barrel jack for optional DC power

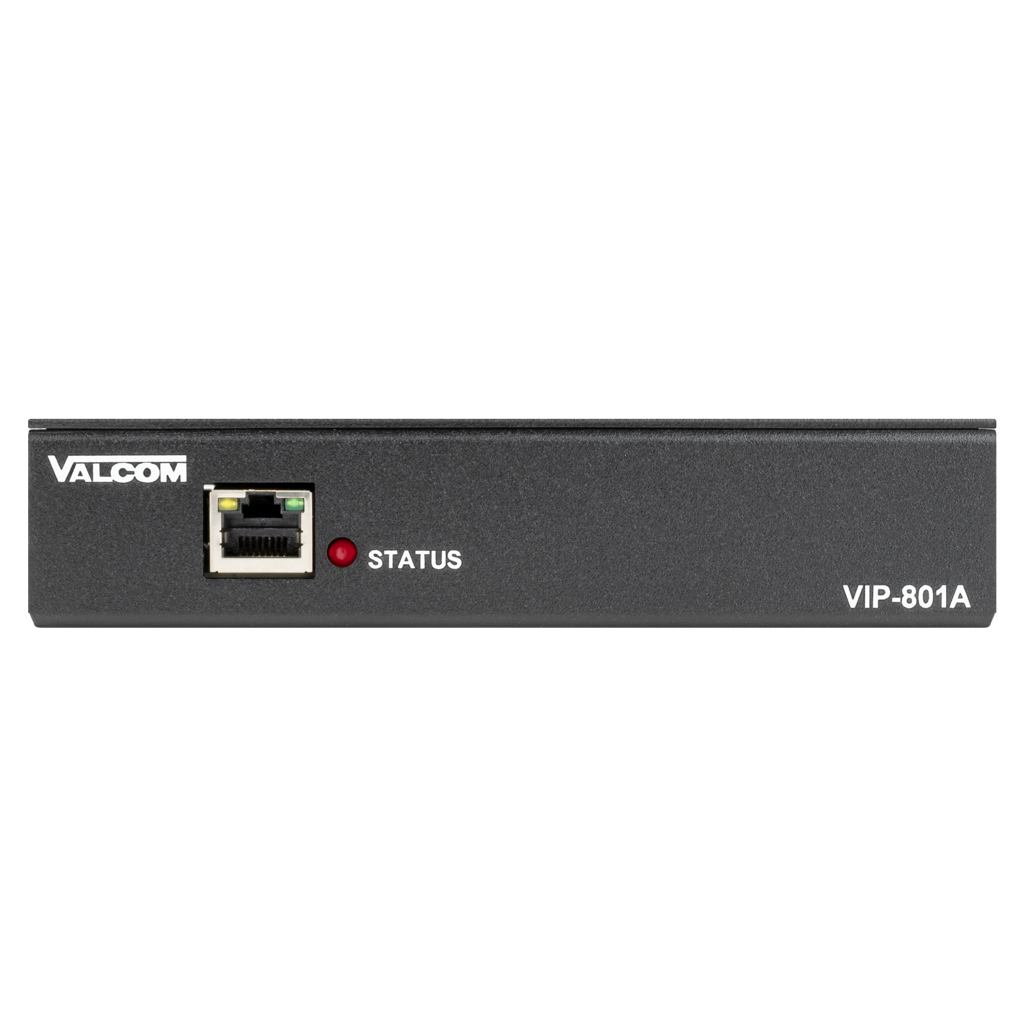

IP Gateway Audio Port, Network — Single Port, VIP-801A
VIP-801A IP Paging Gateway
The VIP-801A is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C Relay Closures
- Programmable contact closure inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Compatible with 25 or 70 Volt amplifiers
- Provides audio for up to 40 Valcom one-way amplified speaker assemblies
- Output control contact closure provided during paging output
- Barrel jack for optional DC power
IP Gateway FXO Port, Network — Dual Port, VIP-822A
VIP-822A Paging Gateway
The VIP-822A IP Paging Gateway FXO Port, Network — Dual Port allows most loop start station ports to be connected to a managed IP-based LAN/WAN. SIP connectivity allows the VIP-822A to act as a gateway device between a SIP telephone system and other Valcom paging systems.
- RJ-45 for network connection
- 2 RJ-11 FXO connections
- 2 RJ-11 failover telephone connections
- Decode Caller ID signals
- Front panel activity LED
- Network activity LEDs
- 2.5mm jack for DC power
- Power over Ethernet (PoE) 802.3af compatible
IP Gateway FXO Port, Network — Quad Port, VIP-824A
VIP-824A IP Paging Gateway
The VIP-824A IP Paging Gateway FXO Port, Network — Quad Port allows most loop start station ports to be connected to a managed IP-based LAN/WAN. SIP connectivity allows the VIP-824A to act as a gateway device between a SIP telephone system and other Valcom paging systems.
- RJ-45 for network connection
- 4 RJ-11 FXO connections
- 4 RJ-11 failover telephone connections
- Power over Ethernet (PoE) 802.3af compatible
- Decode Caller ID signals
- Front panel activity LED
- 5mm jack for DC power
- Network activity LEDs
IP Gateway FXO Port, Network — Single Port, VIP-821A
VIP-821A IP Paging Gateway
The VIP-821A IP Gateway FXO Port, Network — Single Port allows most loop start station ports to be connected to a managed IP-based LAN/WAN. SIP connectivity allows the VIP-821A to act as a gateway device between a SIP telephone system and other Valcom paging systems.
- RJ-45 for network connection
- 1 RJ-11 FX0
- 1 RJ-11 telephone failover connection
- Front panel activity LED
- Network activity LEDs
- 2.5mm jack for DC
- 802.3af compliant
IP Gateway FXS Port, Network — Dual Port, VIP-812B
VIP-812B IP Paging Gateway
Valcom's VIP-812B IP Gateway FXS Port, Network — Dual Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
- RJ-45 for network connection
- 2 RJ-11 telephone connections
- 4 Relays with Form C contacts
- Front panel activity LED
- Network activity LEDs
- Ringer equivalency (REN)=0.8A
- 2.5mm jack for external power (optional)
- Power over Ethernet (PoE) 802.3af compatible
IP Gateway FXS Port, Network — Quad Port, VIP-814B
VIP-814B IP Paging Gateway
Valcom's VIP-814B IP Gateway FXS Port, Network — Quad Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
- RJ-45 for network connection
- 4 RJ-11 telephone connections
- 4 Relays with Form C contacts
- Front panel activity LED
- Network activity LED
- Ringer equivalency (REN)=0.8A
- 2.5mm jack for external power (optional)
- Power over Ethernet (PoE) 802.3af compatible
IP Gateway FXS Port, Network — Single Port, VIP-811A
Valcom's IP Gateway FXS Port, Network — Single Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
- Concurrent SIP and Multicast
- PoE (IEEE 802.3 af)
- Windows based application for control and setup
- Ideal for remote areas where phones are required
- 1 RJ-11 telephone connections
- 2 Relays with Form C contacts
IP Network Input/Output Module, InformaCast®, VIP-848AR-IC
With Valcom's VIP-848AR-IC, you can easily control and monitor virtually any type 3rd party system and device with the 8 input, 8 output contact controller. Multiple devices can easily be connected and controlled via schedules or during emergencies including, but not limited to the following:
- Panic buttons
- Door/gate control
- Turn on/off lights
- Trigger cameras
- Initiate messages
- Gunshots detectors
- Disable elevators
- Turn off heating/air
